SL1600
ShiSheng Group
Conveyor Belt Drying,Curing Oven,Conveyor Belt Oven,Conveyor Belt Furnace,Curing furnace
SL1600 Conveyor Belt Drying/Curing Oven (Conveyor Belt Drying/Curing Oven) was jointly developed by Shisheng's R&D team and R&D personnel of excellent surface anti-corrosion treatment research institutions. It has leading thermal insulation process and thermal energy control design innovation. We push out advanced hot air circulation system, which brings a perfect furnace temperature curve and uniform distribution, effectively increases production capacity, saves costs, and makes the drying/curing oven (Drying/Curing Oven) more environmentally friendly and energy-saving. And in order to comply with the rapid growth trend of Dacromet Coating or Zinc Flake Coating industry, through Shisheng's professional team and leading equipment, as well as advanced workpiece curing system solutions and high-quality service, escort for your products.
Features of SL1600 conveyor belt drying/curing oven:
Intelligent operation, modular design, precise temperature control.
Excellent heat preservation technology brings better energy saving and environmental protection, to realize green production.
High-efficiency burner, SHOEI DCM high-speed gas burner is installed in the combustion chamber on the upper part of the furnace body.The burner has a large spray angle, long flame, complete combustion, and a large adjustment ratio, which is easy to adjust and control. It has automatic ignition. Automatically adjusts the complete set of flame monitoring and flameout protection for zero emissions.
Follow the principle of aerothermodynamics to design the furnace structure and air supply design.
Super versatility: Suitable for drying/curing of coating such as : Dacromet coating, zinc flake coating, Geomet, Magni,DÖRKEN, Teflon, anti corrosion coating, zinc nickel plating, topcoat, sealer.
SL1600 conveyor belt drying/curing oven can be applied to:
Fastener
Nuts and bolts
Sheet metal parts
Nails and screws
Stamping parts
Spring
Chain
Gasket
Casting
Standard parts
Wind power bolts
Steel parts
Fixtures and other metal parts that need anti-corrosion coating process.
Process flow:
Loading→Drying(Pre-heating)→High temperature drying/curing→Cooling and unloading

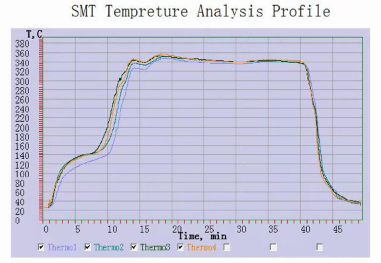

Furnace temperature curve
SL1600 Conveyor Belt Drying/Curing Oven (Conveyor Belt Drying/Curing Oven) was jointly developed by Shisheng's R&D team and R&D personnel of excellent surface anti-corrosion treatment research institutions. It has leading thermal insulation process and thermal energy control design innovation. We push out advanced hot air circulation system, which brings a perfect furnace temperature curve and uniform distribution, effectively increases production capacity, saves costs, and makes the drying/curing oven (Drying/Curing Oven) more environmentally friendly and energy-saving. And in order to comply with the rapid growth trend of Dacromet Coating or Zinc Flake Coating industry, through Shisheng's professional team and leading equipment, as well as advanced workpiece curing system solutions and high-quality service, escort for your products.
Features of SL1600 conveyor belt drying/curing oven:
Intelligent operation, modular design, precise temperature control.
Excellent heat preservation technology brings better energy saving and environmental protection, to realize green production.
High-efficiency burner, SHOEI DCM high-speed gas burner is installed in the combustion chamber on the upper part of the furnace body.The burner has a large spray angle, long flame, complete combustion, and a large adjustment ratio, which is easy to adjust and control. It has automatic ignition. Automatically adjusts the complete set of flame monitoring and flameout protection for zero emissions.
Follow the principle of aerothermodynamics to design the furnace structure and air supply design.
Super versatility: Suitable for drying/curing of coating such as : Dacromet coating, zinc flake coating, Geomet, Magni,DÖRKEN, Teflon, anti corrosion coating, zinc nickel plating, topcoat, sealer.
SL1600 conveyor belt drying/curing oven can be applied to:
Fastener
Nuts and bolts
Sheet metal parts
Nails and screws
Stamping parts
Spring
Chain
Gasket
Casting
Standard parts
Wind power bolts
Steel parts
Fixtures and other metal parts that need anti-corrosion coating process.
Process flow:
Loading→Drying(Pre-heating)→High temperature drying/curing→Cooling and unloading
Furnace temperature curve

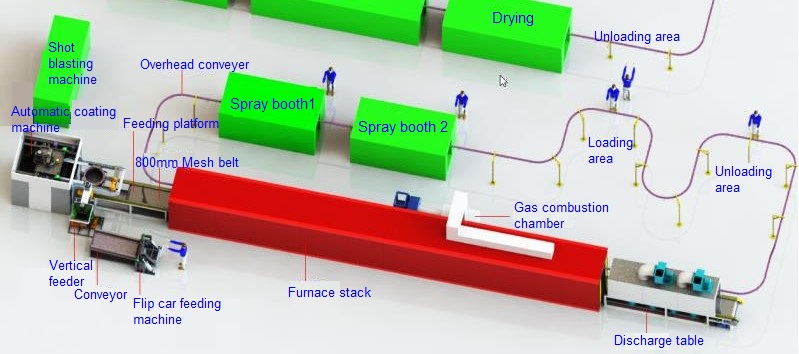

Main body of SL1600 conveyor belt drying/curing oven:
Feed section of gas mesh belt curing furnace
Sintering furnace (pre-baking area, sintering area)
Hot air furnace.
Discharge section.
Forced cooling system
Mesh belt transmission mechanism.
Electrical control system
SL1600 Conveyor Belt Drying/Curing Oven | |
Technical parameters / model number | |
Adjusting range(adjustable) | 100~400℃ |
Temperature rising time(up to 320℃) | ≥50min |
Running speed | V=0.2~1m/min,(Stepless adjustable) |
Mesh belt load bearing | 200kg/m² |
Mesh belt width(optional) | 1200mm |
Maximum workpiece height | 400mm |
Drive power | 5.5kw |
Temperature control precision | ±2℃ |
Burner efficiency | 400000Kca/H |
Average air consumption | 24m³/H(big fire) |
Burner brand | Shoei(optional) |
Energy type | Gas(Electric) |
Length of the furnace body | 16m(46000*2250*3500/Lenght*Width*Height) |
Heating method | Optional: Gas heating or electric heating |
Remark:
The above performance parameters may vary due to different manufacturing process, electrical selection, installation size, workpiece shape and process selection.
Specific construction operations and equipment adjustment and maintenance methods can be guided by our technical engineers on site.
For safety and health protection, please refer to our company's manual.
Main body of SL1600 conveyor belt drying/curing oven:
Feed section of gas mesh belt curing furnace
Sintering furnace (pre-baking area, sintering area)
Hot air furnace.
Discharge section.
Forced cooling system
Mesh belt transmission mechanism.
Electrical control system
SL1600 Conveyor Belt Drying/Curing Oven | |
Technical parameters / model number | |
Adjusting range(adjustable) | 100~400℃ |
Temperature rising time(up to 320℃) | ≥50min |
Running speed | V=0.2~1m/min,(Stepless adjustable) |
Mesh belt load bearing | 200kg/m² |
Mesh belt width(optional) | 1200mm |
Maximum workpiece height | 400mm |
Drive power | 5.5kw |
Temperature control precision | ±2℃ |
Burner efficiency | 400000Kca/H |
Average air consumption | 24m³/H(big fire) |
Burner brand | Shoei(optional) |
Energy type | Gas(Electric) |
Length of the furnace body | 16m(46000*2250*3500/Lenght*Width*Height) |
Heating method | Optional: Gas heating or electric heating |
Remark:
The above performance parameters may vary due to different manufacturing process, electrical selection, installation size, workpiece shape and process selection.
Specific construction operations and equipment adjustment and maintenance methods can be guided by our technical engineers on site.
For safety and health protection, please refer to our company's manual.
